ATF Linac :

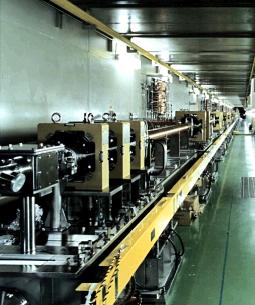

The injector consists of a conventional thermionic gun, a 357 MHz subharmonic buncher, and a 3 m long S-band buncher structure which is followed by 3 m long constant gradient traveling wave structures. The overall length of the linac is 75 m in which 18 structures, focusing magnets, and various monitors are placed.













ATF Damping Ring :

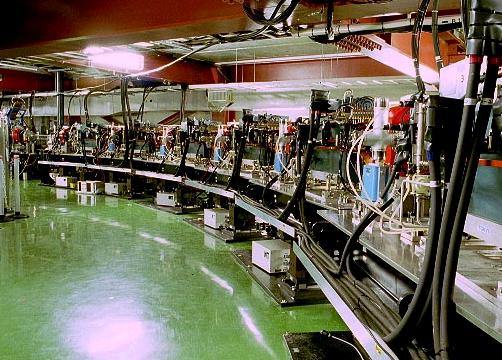

A view of an arc section of the ATF damping ring (DR). The ATF DR consists of two straight sections and two arc sections. Each arc section provides an overall 180 degree bend for the beam to be bent. This pictures shows a downstream half of the West Arc. The beam goes from the right to the left.
@
